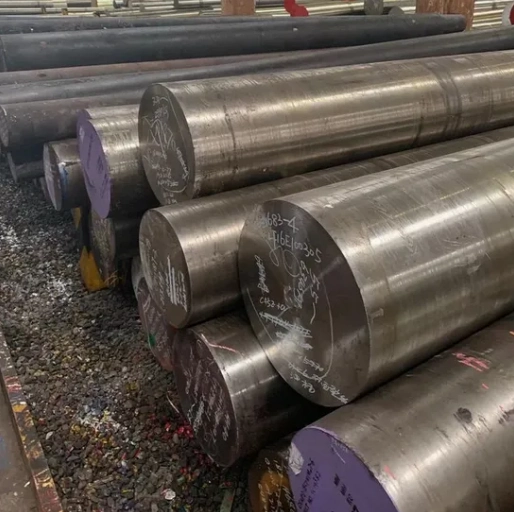

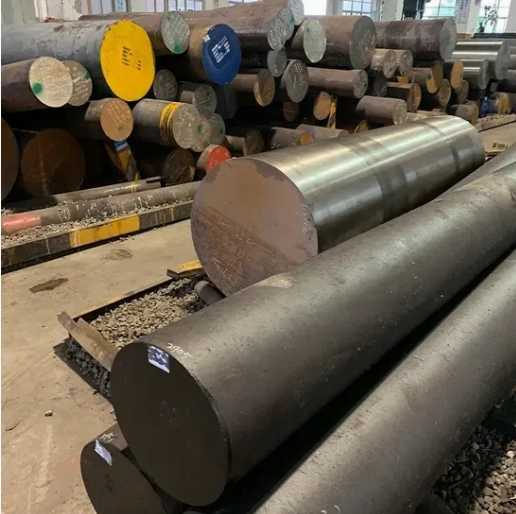

Quenched & Tempered Forged Round Blanks
Comprehensive Description
We supply professional cold drawn mould & tool steel bars covering cold work die steel, hot work die steel and plastic mold steel with abundant material grades.
Available shapes include round bar and flat bar. Round bar: hot rolled diameter 10–60mm, custom hot forged diameter; flat bar: hot rolled 12–60×100–610mm, hot forged 30–350×2. Length can be customized from 500mm to 5800mm or fixed size.
Multiple surface options: coated, black surface, sand blasting, grinded, machined. The annealed hardness reaches 265~310 HBS. We support complete heat treatment processes: normalized, annealed, quenched and tempered.
This tool steel is widely used for high-strength plate, wear-resistant steel, silicon steel, cold heading steel and free cutting steel manufacturing. Delivery conditions include forged, hot rolled and cold drawn. All goods adopt export standard seaworthy packing, HS code 72254010, our annual production capacity is 5000 tons.
Available shapes include round bar and flat bar. Round bar: hot rolled diameter 10–60mm, custom hot forged diameter; flat bar: hot rolled 12–60×100–610mm, hot forged 30–350×2. Length can be customized from 500mm to 5800mm or fixed size.
Multiple surface options: coated, black surface, sand blasting, grinded, machined. The annealed hardness reaches 265~310 HBS. We support complete heat treatment processes: normalized, annealed, quenched and tempered.
This tool steel is widely used for high-strength plate, wear-resistant steel, silicon steel, cold heading steel and free cutting steel manufacturing. Delivery conditions include forged, hot rolled and cold drawn. All goods adopt export standard seaworthy packing, HS code 72254010, our annual production capacity is 5000 tons.
Specifications
| Parameter Item | Details |
| Model NO. | P20, Cr12MOV, C45, S45c, X12m, St d11, SUS410, H13, SKD61 |
| Technique | Cold Drawn |
| Surface Treatment | Coated |
| Surface Condition | Black Surface, Sand Blasting, Grinded, Machined |
| Application | Die Steel, Tool Steel |
| Composition | Mould / Tool Steel |
| Shape | Bar |
| Round Bar Size | Hot Rolled: Diameter 10–60mm; Hot Forged: Custom Diameter |
| Flat Bar Size | Hot Rolled: 12–60×100–610mm; Hot Forged: 30–350×2 |
| Length | 500mm–5800mm or Fixed Custom Length |
| Annealed Hardness | 265~310 HBS |
| Cold Work Die Steel Grades | Cr12MOV, D2, Cr12, Df-2, Xw-41, Xw-42 |
| Hot Work Die Steel Grades | H13, 8407, 8418, Fdac, 4cr5movsi, 1.2343, 1.2344 |
| Plastic Mold Steel Grades | S136, 718h, Calmax, S136h, Nak101, Nak80 |
| Die Steel Grades | DC53, SKD11, K110, K306, K360, 1.2379 |
| Mold Steel Grades | Nak-Prm, 1.2711, 1.231, 1.2083, M200, M340, M238 |
| Steel Base Grade | C45 / S45c |
| Special Use | High-strength Steel Plate, Wear Resistant Steel, Silicon Steel, Cold Heading Steel, Free Cutting Steel, Mold Steel |
| Delivery Condition | Forged, Hot Rolled, Cold Drawn |
| Heat Treatment Options | Normalized, Annealed, Quenched, Tempered |
| Specification | Hot Rolled: diameter 10–60mm, Hot Forged: Custom diameter |
| Transport Package | Export Standard Packing |
| HS Code | 72254010 |
| Origin | China |
| Production Capacity | 5000 Tons/Year |
