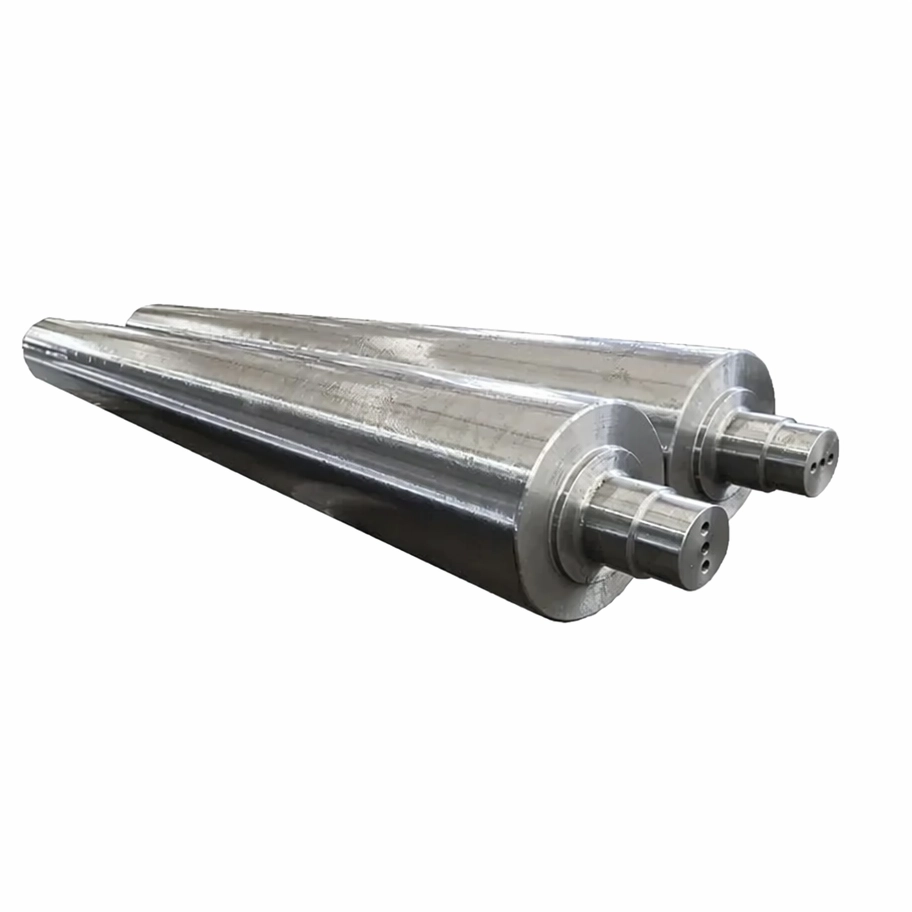

Forged Roll Shafts & Sleeves for Mineral Roller Presses
Product Overview & Key Features
Forged Roll Shafts Definition
Mineral roller presses are central to modern, low-energy mineral grinding circuits. They operate by feeding brittle raw materials between two counter-rotating rollers—a fixed roller bolted to the frame and a sliding roller compressed by heavy hydraulic cylinders delivering immense grinding pressure (~100 KN/cm).
The forged roll shaft and roller sleeve assembly form the core power-transmitting and crushing interface of this system. Compared to traditional ball mills, roller presses equipped with FWD Forgings' heavy-duty roll shafts offer significantly lower operational noise, reduced steel abrasion loss, higher grinding throughput, a compact footprint, and simplified installation. We supply both sleeved roller assemblies and integral forged rollers tailored to your equipment specifications.
Key Advantages
| Feature | Description |
| High-Performance Forged Steel Core | Hot forging eliminates internal micro-voids, providing the high core toughness needed to absorb continuous 100 KN/cm hydraulic shock loads. |
| Extended 8,000–10,000 Hour Lifespan | Advanced hard surfacing overlay welding achieves surface hardness of HRC 55–60, ensuring exceptional abrasion resistance. |
| Versatile Structural Options | Choose between convenient sleeved rollers (replaceable sleeves) or ultra-rugged integral forged rollers. |
| Custom Overlay Welding Textures | Available in grooved, circular corrugated, herringbone ripple, and inclined grid corrugation patterns for optimal material nip and throughput. |
| On-Site Maintenance Support | Supports convenient on-line overlay welding repair services for worn rollers, drastically reducing downtime and replacement costs. |
| Broad Diameter Capability | Manufactured in outer diameters ranging from 500 mm to 1,500 mm to fit various roller press models. |
Manufacturing Process & Quality Assurance
To ensure every forged roll shaft withstands intense crushing loads and continuous abrasive wear, FWD Forgings follows a controlled manufacturing workflow for all our custom metal forgings:
Technical Specifications
| Parameter Category | Specification / Capability |
| Product Name | Forged Roll Shafts, Sleeves & Integral Rollers |
| Application Equipment | Finish Grinding Roller Presses & Combined Grinding Roller Presses |
| Structural Options | Sleeved Rollers (Shaft + Replaceable Sleeve) / Integral Forged Rollers |
| Roller Component Types | Fixed Rollers & Sliding Rollers (Hydraulic load ~100 KN/cm) |
| Raw Material | High-Performance Alloy Forged Steel |
| Outer Diameter Range | 500 mm to 1,500 mm (Customized to OEM drawings) |
| Surface Hardening Method | Hard Surfacing Overlay Welding with Wear-Resistant Alloy Wire |
| Surface Hardness | HRC 55 to HRC 60 |
| Wear Surface Patterns | Grooved, Circular Corrugated, Herringbone Ripple, Inclined Grid Corrugation |
| Service Lifespan | 8,000 to 10,000 Working Hours (Supports On-Line Repair Welding) |
| Crushing Materials | Limestone, Sandstone, Shale, Cement Clinker, Blast Furnace Slag |
Industrial Applications
Our heavy-duty forged roll shafts and hard-faced roller assemblies serve as critical crushing components across major mineral processing and building material industries:
-
Cement Manufacturing: Finish grinding and raw material pre-grinding roller presses for cement clinker and limestone.
-
Mining & Ore Processing: Mineral crushing circuits processing iron ore, shale, sandstone, and copper ore.
-
Metallurgical & Slag Processing: High-pressure grinding of blast furnace slag and industrial clinker.
-
Power & Chemical Plants: Fine grinding and crushing equipment for brittle mineral feedstocks.
Why Choose FWD Forgings
Optimized Wear Resistance & Engineering Support
We specialize in build-to-print OEM production for heavy mineral processing equipment. From recommending the right structural design (sleeved vs. integral forged) to selecting optimal overlay welding patterns, our engineering team customizes each shaft to your exact operating pressure and raw material abrasiveness. We also produce a wide range of custom forged shafts for heavy machinery drivetrains.
Advanced In-House Hard Surfacing Capabilities
Unlike standard forging shops, FWD Forgings integrates automated wear-resistant overlay welding directly into our production line. By applying specialized alloy wires under controlled thermal cycles, we ensure seamless bonding between the forged steel substrate and the hard-faced crushing layer.
Trusted Overseas OEM Manufacturer
As an established China forging manufacturer, we maintain strict ISO9001 quality systems. Every shipped roll shaft includes material traceability logs, heat treatment charts, 100% UT testing reports, and custom seaworthy export packaging to safeguard heavy components during transit.
Frequently Asked Questions
Q1: What is the main difference between sleeved rollers and integral forged rollers for roller presses?
Sleeved rollers feature a separate forged roll shaft with a replaceable forged outer sleeve, allowing you to replace or resurface only the worn sleeve during overhauls. Integral forged rollers are forged as a single monolithic piece, offering maximum structural rigidity for extreme load applications.
Q2: What service life can be expected from FWD Forgings' mineral press rollers?
Thanks to high-performance forged steel cores and wear-resistant hard surfacing overlay welding (HRC 55–60), our roller shafts typically deliver 8,000 to 10,000 operating hours, depending on the abrasiveness of the feed material.
Q3: Can these worn roller press shafts be repaired on-site?
Yes. Our hard-surfaced overlay welding layer is designed to support convenient on-line repair welding directly on site. This allows maintenance teams to rebuild worn surface patterns without completely disassembling the roller press.
Q4: Which surface texture pattern should I select for my mineral grinding application?
-
Grooved / Inclined Grid: Excellent for raw material nip and uniform pressure distribution.
-
Herringbone Ripple / Circular Corrugated: Ideal for preventing material slippage when processing moist or variable-sized mineral feedstocks like shale and limestone.
Q5: What sizes can FWD Forgings manufacture for roller press shafts?
We manufacture custom roll shafts and sleeves with outer diameters ranging from 500 mm to 1,500 mm, fully customized according to your CAD drawings and press specifications.
