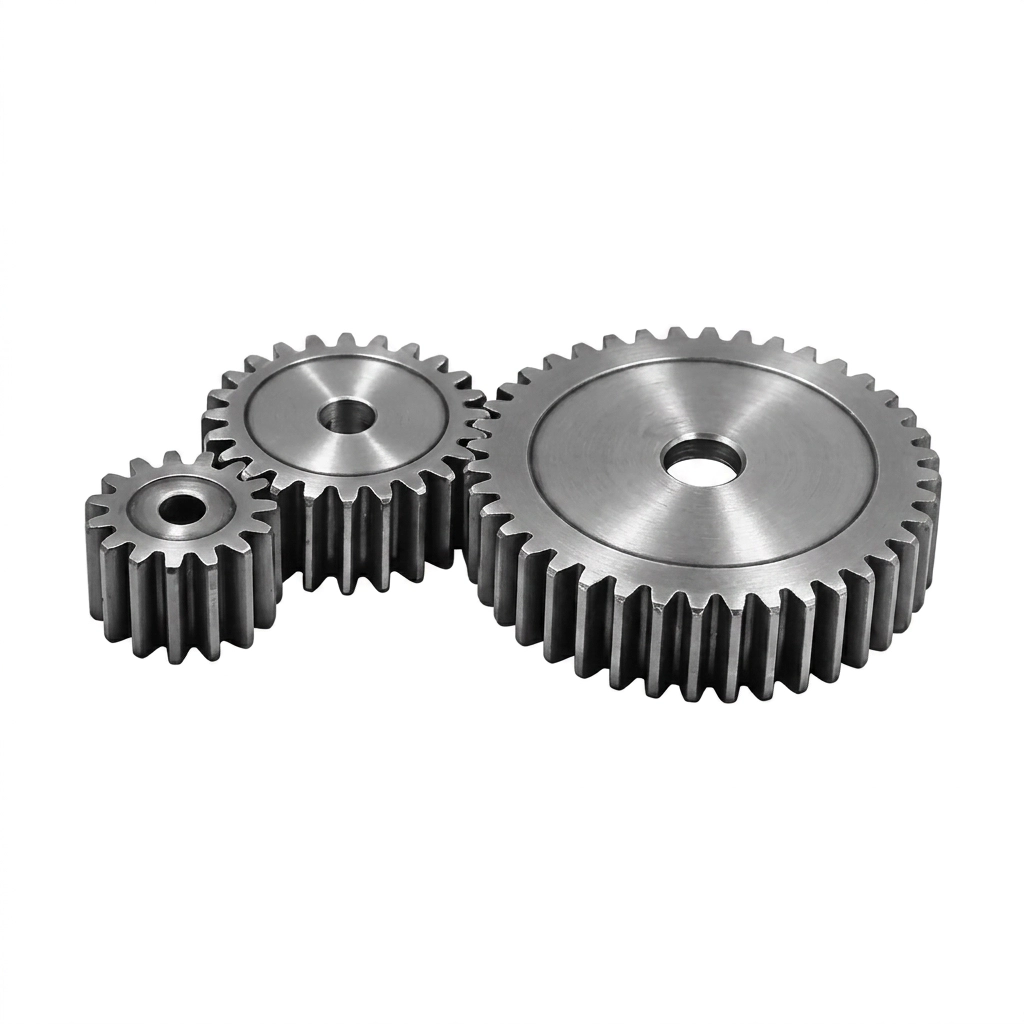

Steel Gear Blanks for Heavy-Duty Gear Systems
Product Overview & Key Features
Precision Steel Gear Blanks for Reliable Power Transmission
High-integrity steel gear blanks serve as the essential foundation for manufacturing precision gears used in industrial gearboxes, heavy machinery, and power transmission systems. Because transmission gears operate under continuous tooth contact and heavy hydraulic or mechanical stress, the raw steel gear blank must possess exceptional core toughness, uniform material density, and total freedom from internal defects.
Compared to cast iron or flame-cut plate blanks, hot-forged steel gear blanks provide vastly superior mechanical performance. The high-tonnage hot forging process compresses internal micro-porosity, refines the alloy's internal grain structure, and aligns metal flow along the outer perimeter where the gear teeth will be cut. This drastically improves tooth bending strength, fatigue resistance, and impact durability under continuous high-load operations.
Key Features
| Feature | Description |
| High Load Capacity | Forged grain alignment provides maximum yield strength to withstand high radial forces and heavy transmission torque. |
| Enhanced Fatigue Resistance | Void-free internal structure prevents fatigue micro-cracks at the tooth root during high-cycle transmission service. |
| Excellent Wear Resistance | Tempered material core paired with optional chrome plating delivers superior resistance to surface erosion and gear pitting. |
| Precision Blank Dimensions | Precision CNC turning and milling ensure tight dimensional tolerances, reducing final gear hobbing and shaping cycle times. |
| Custom Design Capability | Manufactured strictly to 2D/3D CAD drawings for internal spur rings, solid spur gear blanks, and custom gear shafts. |
Applications of Spur Gear Forgings
Our custom forged steel gear blanks are engineered to meet the high reliability and torque transfer standards required across major heavy industrial sectors:
-
Industrial Gear Reducers & Machinery: Heavy-duty spur gear blanks for industrial speed reducers, conveyor drive units, and plant machinery requiring smooth power transfer.
-
Mining & Heavy Construction Equipment: High-impact spur gear blanks for excavator gearboxes, crusher drives, ball mills, and heavy winches subjected to dynamic shock loads.
-
Wind Power & Power Generation: Precision forged gear blanks for wind turbine pitch/yaw drives and auxiliary turbine gearboxes operating under cyclic loads.
-
Marine & Offshore Transmission Systems: Marine propulsion gearbox spur blanks, deck winch gears, and heavy steering system components built for corrosive operating environments.
Materials & Technical Specifications
Selecting the proper alloy grade, thermal processing, and surface finish ensures long tooth service life against pitting and fatigue. Below are the technical parameters for our spur gear forging blanks:
| Parameter Category | Technical Specification |
| Product Name | Spur Gear Forging Blanks / Custom Gear Forgings |
| Material Options | Stainless Steel (Standard & Custom Alloy Steel Grades) |
| Supported Geometries | External Spur Blanks, Internal Circular Gear Rings, Bevel Wheels, Custom Blanks |
| Processing Technics | Hot Forging / Casting Options + CNC Milling + CNC Reishauer Gear Grinding |
| Heat Treatment | Tempering (Optimizes Core Toughness and Machinability) |
| Surface Treatment | Chrome Plating (Increases Surface Hardness & Corrosion Resistance) |
| Quality Verification | Machinery Test Reports & Video Outgoing Inspection Provided |
| Customization Support | Full OEM & ODM Customization Based on Drawings or Samples |
| Annual Production Capacity | 500,000 Pieces / Year |
| Lead Time & Logistics | 1 Piece Trial: 30 Days | Bulk Orders: Negotiated Schedule |
| Packaging Specification | Standard Export Packaging (1000cm×1000cm×1000cm, Gross Weight: 10,000kg) or Customized |
Manufacturing Process
To ensure consistent material density, exact near-net dimensions, and optimal tooth-cutting machinability, FWD Forgings follows a controlled 4-step manufacturing process:
Quality Assurance
Quality control is critical when producing spur gear forging blanks, as subsurface inclusions or voids can cause tooth failure during final gear machining or field operation. FWD Forgings applies strict quality checks across every production stage:
-
Chemical Composition Analysis: Spectrographic testing verifies alloy composition before forging begins.
-
Mechanical Property & Hardness Testing: Confirms the tempered core achieves required tensile strength and core hardness.
-
Ultrasonic Testing (UT): 100% volumetric NDT inspection to eliminate internal porosity, cracks, or inclusions inside the blank body.
-
CMM & Dimensional Inspection: Precision measurement of blank diameters, bore concentricity, and face parallelism.
-
Machinery Test Reports & Video Inspection: Fully provided upon request to international buyers prior to shipment dispatch.
Why Choose FWD Forgings
Engineering Support & Build-to-Print Manufacturing
We provide comprehensive technical support for custom forged steel parts, including drawing reviews, material recommendations, and forging process optimization to ensure your spur gear blanks cut cleanly and perform reliably.
Advanced Machining & Finishing Equipment
Our facility is equipped with multi-axis CNC turning centers, milling units, and CNC Reishauer gear grinding machines, allowing us to supply either raw forged blanks or high-precision pre-machined gear blanks ready for final tooth shaping.
Reliable Capacity & Flexible Ordering
Operating as a trusted China forging factory in Jinan, our facility manages an annual production capacity of 500,000 pieces. We support low-risk trial sampling with a 30-day lead time for single-piece sample orders.
Frequently Asked Questions
Q1: What are spur gear forging blanks used for?
Spur gear forging blanks are near-net-shape forged steel components used as the raw material for machining precision spur gears. They provide the structural core for gears used in industrial gearboxes, pumps, and heavy machinery drives.
Q2: Why choose forged spur gear blanks over cast or plate-cut blanks?
Hot forging compresses internal micro-porosity and aligns the steel's grain structure along the outer rim. This results in higher impact toughness, superior tensile strength, and significantly greater resistance to tooth fatigue cracking compared to cast iron or plate blanks.
Q3: Can FWD Forgings supply pre-machined spur gear blanks with finished teeth?
Yes. We can supply raw forged blanks, rough-turned blanks, or fully machined spur gears complete with precision tooth profiles processed via CNC milling and CNC Reishauer gear grinding.
Q4: What materials and surface treatments are available for spur gear blanks?
We forge blanks in stainless steel, carbon steel, and specialized alloy steel grades. Surface treatments include tempering heat treatment for core toughness and hard chrome plating for surface wear and corrosion protection.
Q5: What is your sample lead time and minimum order requirement?
We accept 1-piece sample orders for customer testing and validation with a standard lead time of 30 days. Bulk production delivery schedules are arranged based on order volume.
