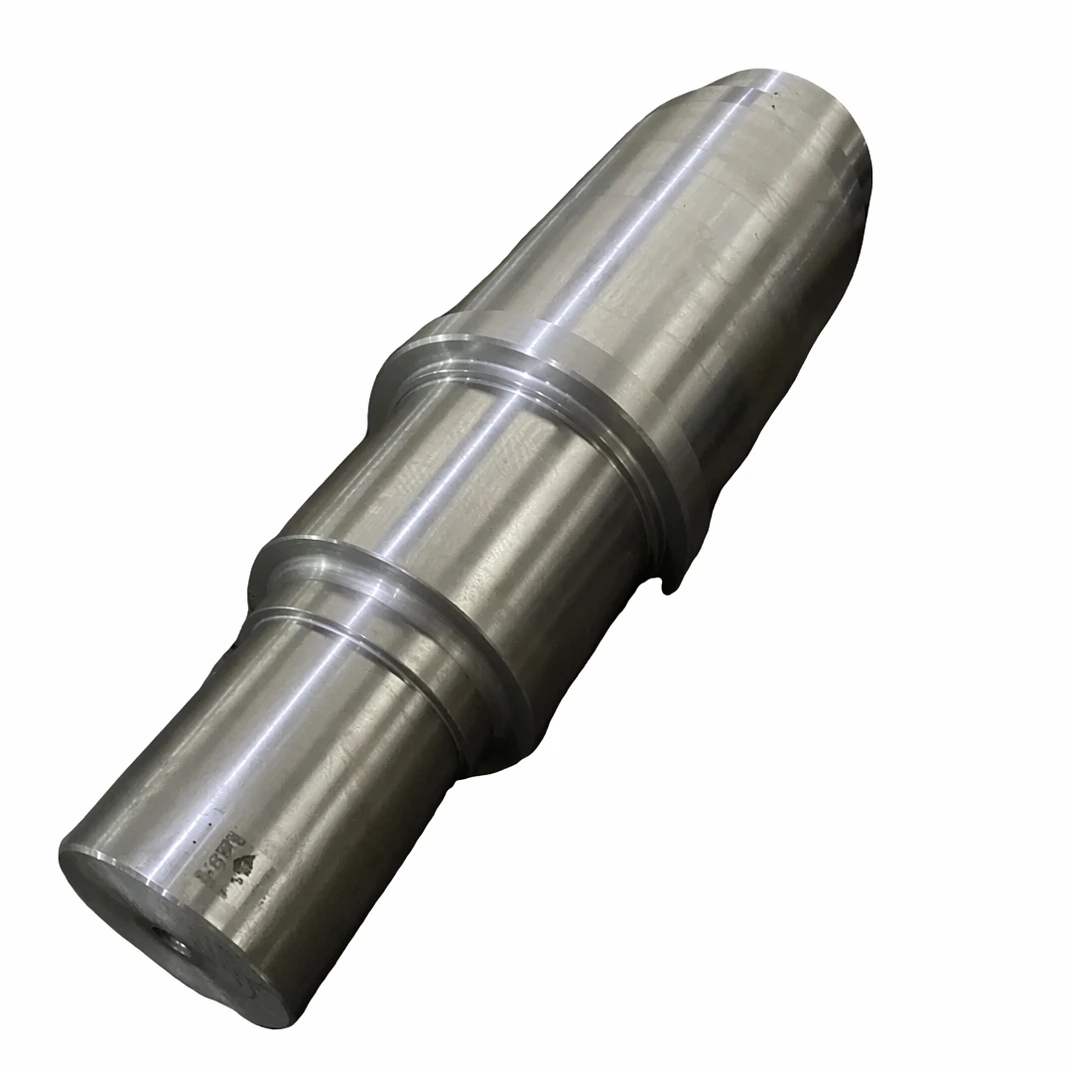

Precision Forged Drive Shafts for Marine & Drivetrains
Product Overview & Key Features
Forged Drive Shafts Definition
Drive shafts, main shafts, and motor shafts serve as the core rotating backbone in industrial transmission systems. They transmit power, velocity, and heavy rotational torque from prime movers (such as electric motors, marine engines, and heavy gearboxes) to driven equipment.
Designed under the shaft forgings category, FWD Forgings’ custom motor shafts are engineered to withstand severe torsional stress, bending moments, and heavy shock loads. Utilizing full-process custom manufacturing—from closed and open die forging to final gear grinding—these straight shafts deliver smooth, vibration-free power transmission across marine, automotive, and heavy industrial machinery applications.
Key Advantages
| Feature | Description |
| High Structural Integrity | Grain refinement through die forging eliminates internal voids, yielding superior fatigue resistance under continuous cyclic loads. |
| Extreme Surface Hardness | Specialized heat treatments (such as Carburizing & Quenching) achieve surface hardness up to HRC 55–60 and depth of 8–12mm. |
| High Precision Gear Teeth | Full inline gear processing (Hobbing, Shaping, Grinding) provides gear precision classes from DIN 5 to DIN 7. |
| Tight Machining Tolerances | Controlled forging tolerance within ±0.5mm, with CNC finish machining and grinding tolerances reaching ±0.01mm. |
| Broad Material Adaptation | Available in premium alloy steels (SCM 415, 4140, 5140, F11), carbon steels (A1050), and stainless steels (304L, 316L). |
| Flexible Bore Options | Supplied with Finished Bore, Pilot Bore, or specialized custom splines and keyways according to customer specifications. |
Manufacturing Process & Quality Assurance
To guarantee reliable power transmission in critical marine and industrial environments, FWD Forgings executes a rigorous, step-by-step production process for all our custom forged shafts:
Technical Specifications
| Parameter Category | Specification / Capability |
| Product Name | Drive Shaft, Main Shaft & Motor Shaft Forgings |
| Standard Materials |
Alloy Steel: SCM 415, 4140, 4130, 5140, F11 Carbon Steel: A1050, 30#, 45#, 50# Stainless Steel: 304, 304L, 316, 316L Non-Ferrous Alloys: Brass, Bronze, Aluminum Alloy |
| Manufacturing Method | Die Forging + Machining + Precision Finishing |
| Size & Dimensional Range |
Min Diameter: 100 mm | Max Diameter: 6,000 mm Max Length: 6,000 mm | Shaft Shape: Straight Shaft (Round Bar, Square, Ring, Cylinder) |
| Tolerances |
Forging Tolerance: ±0.5 mm Machining Tolerance: ±0.01 mm |
| Gear Teeth Specifications |
Precision Class: DIN 5 to DIN 7 | Pressure Angle: 20° Module Range: 1 to 4 | Teeth Range: Z15 to Z70 |
| Bore Configuration | Finished Bore, Pilot Bore, Special Customized Holes / Splines / Keyways |
| Heat & Surface Treatment | Quenching & Tempering, Carburizing & Quenching, High-Frequency Hardening, Carbonitriding, Passivation, Tooth Surface High Quenching |
| Surface Hardness | Core HRC 50–56, Max Hardness HRC 55–60 (Hardening Depth: 8–12mm) |
| Compliance & Standards | ANSI, ASME, ASTM, AISI, DIN, JIS, BS | Certified ISO9001:2015, CE, RoHS |
Industrial Applications
Our high-precision forged drive shafts and motor shafts are engineered for high-load power transmission systems across major industrial sectors:
-
Marine & Shipbuilding: Marine motor main shafts, trailer drive shafts, rudder shafts, and thruster drivetrain components.
-
Automotive & Commercial Vehicles: Heavy-duty vehicle drive shafts, axle shafts, transmission main shafts, and differential gear shafts.
-
Industrial & Heavy Machinery: Motor drive shafts for sanitation machinery, industrial cranes, pumps, reduction gearboxes, and power generation equipment.
-
Precision Mechanical Systems: Precision gear shafts for electrical machinery, automated drive equipment, and heavy industrial instrumentation.
Why Choose FWD Forgings
Integrated OEM & ODM Capabilities
As an established China forging factory, FWD Forgings offers end-to-end custom manufacturing. From initial engineering drawing review (CAD/STEP) to material selection, forging, gear cutting, and custom heat treatment, we deliver complete build-to-print solutions.
Complete In-House Gear Machining
We integrate full gear manufacturing technologies under one roof—including Gear Hobbing, Gear Milling, Gear Shaping, Gear Broaching, Gear Shaving, Gear Grinding, and Gear Lapping. This allows us to achieve gear accuracy up to DIN 5–7 without outsourcing.
Mass Capacity & Robust Quality System
With an annual production capacity of 100,000 meters and rigorous ISO9001:2015 quality control systems, we support both high-volume OEM orders and custom batch production. All products are packed in heavy-duty wooden cases or palletized containers to guarantee safe ocean transit.
Frequently Asked Questions
Q1: What mechanical applications are these forged drive shafts used for?
Our forged drive shafts are primarily used to transmit rotational motion and torque in marine motor systems, automotive drive trains, reduction gearboxes, and heavy industrial machinery.
Q2: What gear precision grades can FWD Forgings achieve on motor shafts?
Through complete gear machining and final gear grinding, we achieve gear precision classes ranging from DIN 5 to DIN 7, with module sizes from 1 to 4 and tooth counts from Z15 to Z70 at a 20-degree pressure angle.
Q3: What surface hardness and hardening depths can be achieved?
Using Carburizing & Quenching or High-frequency Hardening, we achieve surface hardness levels up to HRC 55–60 (core hardness HRC 50–56) with a hardening depth ranging between 8mm and 12mm.
Q4: Can you produce custom motor shafts according to international standards?
Yes. We manufacture strictly according to client drawings and international engineering standards, including ANSI, ASME, ASTM, AISI, DIN, JIS, and BS. We also produce a wide range of other forged metal products for heavy industry.
Q5: What are the maximum diameter and length limits for your shaft forgings?
Our production facilities can forge and machine straight shafts with a maximum outer diameter of up to 6,000 mm and a maximum continuous length of up to 6,000 mm.
