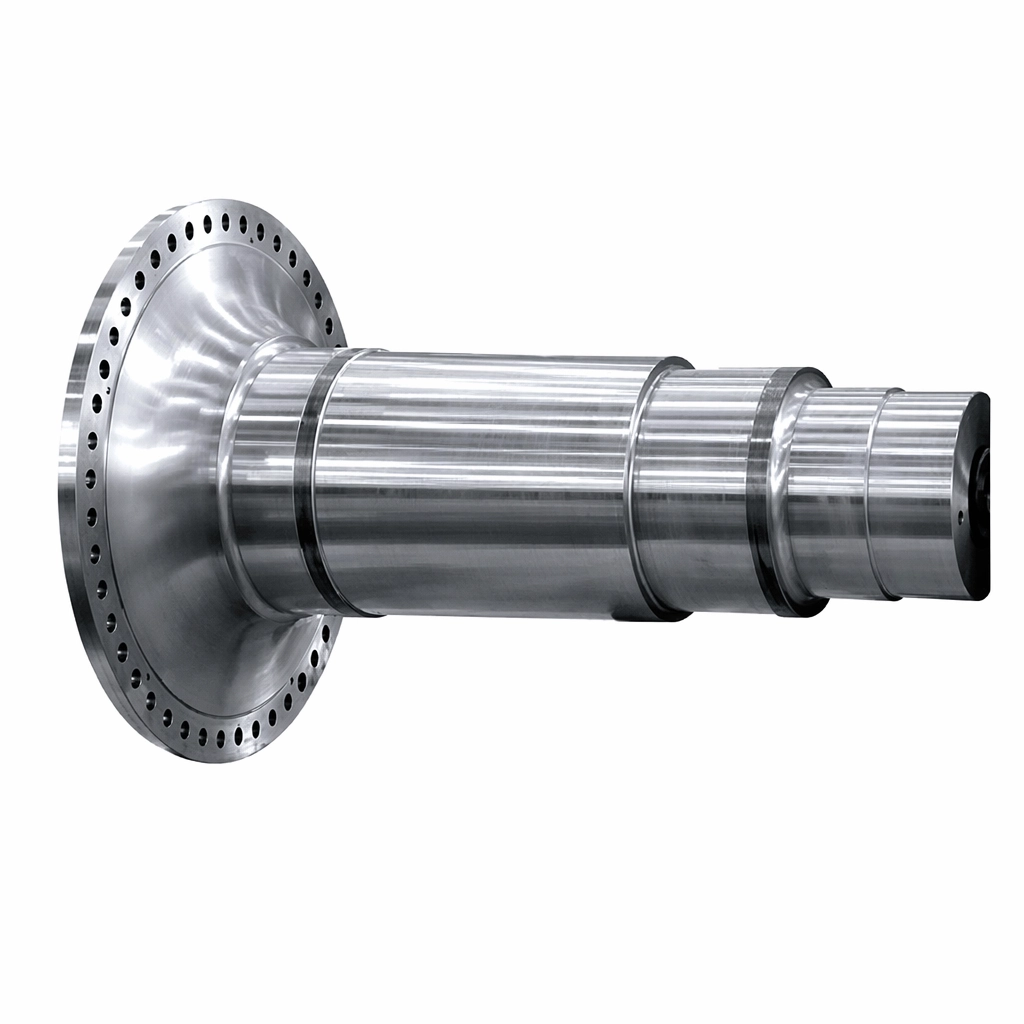

Custom Wind Turbine Shaft Forgings
Product Overview & Key Features
Forged Wind Turbine Shaft Definition
In advanced wind energy conversion systems, wind turbines ingeniously harness wind power to generate electricity through the aerodynamic forces acting on their rotor blades. As wind flows across the blades, a pressure differential creates aerodynamic lift that drives continuous rotor rotation. This rotational energy is then transferred to the generator—either through seamless direct-drive systems or via precision-machined transmission shafts and gearbox assemblies that boost rotational speed for high-efficiency power generation.
The forged wind turbine shaft acts as the backbone of this mechanical drivetrain. Backed by extensive engineering experience in global wind power projects, FWD Forgings produces specialized, high-capacity transmission shafts designed to transfer motion and torque while providing robust support for heavy rotating components under severe operating conditions.
Key Advantages
| Feature | Description |
| High Strength Forged Structure | Refines internal grain alignment through advanced open die forging, eliminating internal defects and boosting structural density. |
| Excellent Fatigue Resistance | Specially engineered to endure continuous cyclic loading, heavy torque, and rotational fatigue in harsh wind energy environments. |
| Reliable Torque Transmission | Provides high mechanical performance and torsional rigidity to safely transfer rotational power to gearboxes or generators. |
| Massive Size Capacity | Capable of producing heavy-duty shafts up to 20,000 mm in length, 1,850 mm in outer diameter, and 160 tons in weight. |
| Broad Material Compatibility | Manufactured from premium carbon steel, high-strength alloy steel, or specialized stainless steel grades. |
| Full OEM & ODM Support | Tailored strictly to customer CAD drawings, strict dimensional tolerances, and specific engineering standards. |
Manufacturing Process & Quality Assurance
To ensure every forged shaft satisfies the stringent reliability demands of the wind energy sector, FWD Forgings maintains an end-to-end controlled manufacturing workflow for all our custom metal forgings:
Technical Specifications
| Parameter Category | Specification / Capability |
| Product Name | Wind Turbine Shaft Forgings |
| Material Grades |
Carbon Steel: 30#, 45#, 50#, etc. Alloy Steel: 40Cr, 42CrMo, 20CrMnTi Stainless Steel: 304, 316, 321 |
| Manufacturing Process | Custom Forging, Machining, Heat Treatment, and Surface Finishing |
| Size Capacity |
Max. Length: 20,000 mm Max. Diameter: 1,850 mm Max. Single Weight: 160 Tons |
| Heat Treatment Processes | Normalizing & Tempering; Quenching & Tempering; Hardening (Quenching); Carburizing; Nitriding |
| Performance Attributes | High Strength, Excellent Fatigue Resistance, Reliable Torque Transmission |
| Service Scope | OEM & ODM Custom Forged Shaft Solutions According to Customer Drawings and Technical Requirements |
| Inspection & Quality | Ultrasonic Testing (UT), Chemical Analysis, Hardness Testing, Dimensional Inspection |
Industrial Applications
Our large-scale wind turbine transmission shafts are engineered to support essential rotating components and drive mechanisms across several wind energy and heavy machinery sectors:
-
Wind Turbine Main Systems: Rotor hub main shafts designed for both onshore and offshore wind energy platforms.
-
Gearbox Transmission Systems: Precision-forged high-torque shafts that connect and drive planetary gearbox assemblies.
-
Generator Drive Components: High-speed generator shafts designed for direct-drive and geared wind turbine architectures.
-
Heavy Renewable Drivetrains: Custom transmission shafts for commercial power generation and heavy machinery rotational support.
Why Choose FWD Forgings
Full Engineering Support & Customization
As a trusted forged components manufacturer, we specialize in build-to-print OEM and ODM services. From evaluating your engineering drawings to advising on material grades (such as 42CrMo vs. 20CrMnTi) and specialized heat treatments (like nitriding or carburizing), our team ensures optimal cost efficiency and structural performance.
Extreme Manufacturing Capacity
Unlike standard forging suppliers, FWD Forgings possesses the heavy equipment necessary to handle massive industrial shaft forgings up to 20 meters in length and 160 tons in single weight, making us a primary choice for utility-scale wind power projects.
Rigorous Quality Assurance
Quality control is embedded into every step of our production line. Every shipped forging includes comprehensive material test certificates (MTRs), chemical and mechanical test logs, heat treatment charts, and full non-destructive testing reports to ensure long-term field reliability.
Frequently Asked Questions
Q1: What functions do wind turbine shaft forgings perform in a turbine drivetrain?
Wind turbine shaft forgings transmit motion and rotational torque from the rotor blades to the gearbox or generator, while also providing critical structural support for the rotating drivetrain components.
Q2: What materials are available for custom wind turbine shaft forgings?
We offer a broad selection of materials tailored to your load requirements, including high-strength carbon steels (30#, 45#, 50#), robust alloy steels (40Cr, 42CrMo, 20CrMnTi), and corrosion-resistant stainless steels (304, 316, 321).
Q3: What are the maximum size and weight capabilities for FWD Forgings' shaft products?
Our manufacturing facility can process single heavy-duty shaft forgings with a maximum length of up to 20,000 mm (20 meters), a maximum outer diameter of 1,850 mm, and a maximum single component weight of 160 tons.
Q4: Which heat treatment options can be applied to the shafts?
Depending on whether your application requires uniform core toughness or high surface wear resistance, we provide Normalizing & Tempering, Quenching & Tempering (Q+T), Surface Hardening, Carburizing, and Nitriding.
Q5: Can FWD Forgings manufacture shafts directly from custom engineering drawings?
Yes. We operate primarily as an OEM/ODM manufacturer. We produce custom shaft forgings completely according to your provided technical drawings, dimensional tolerances, and material standards.
