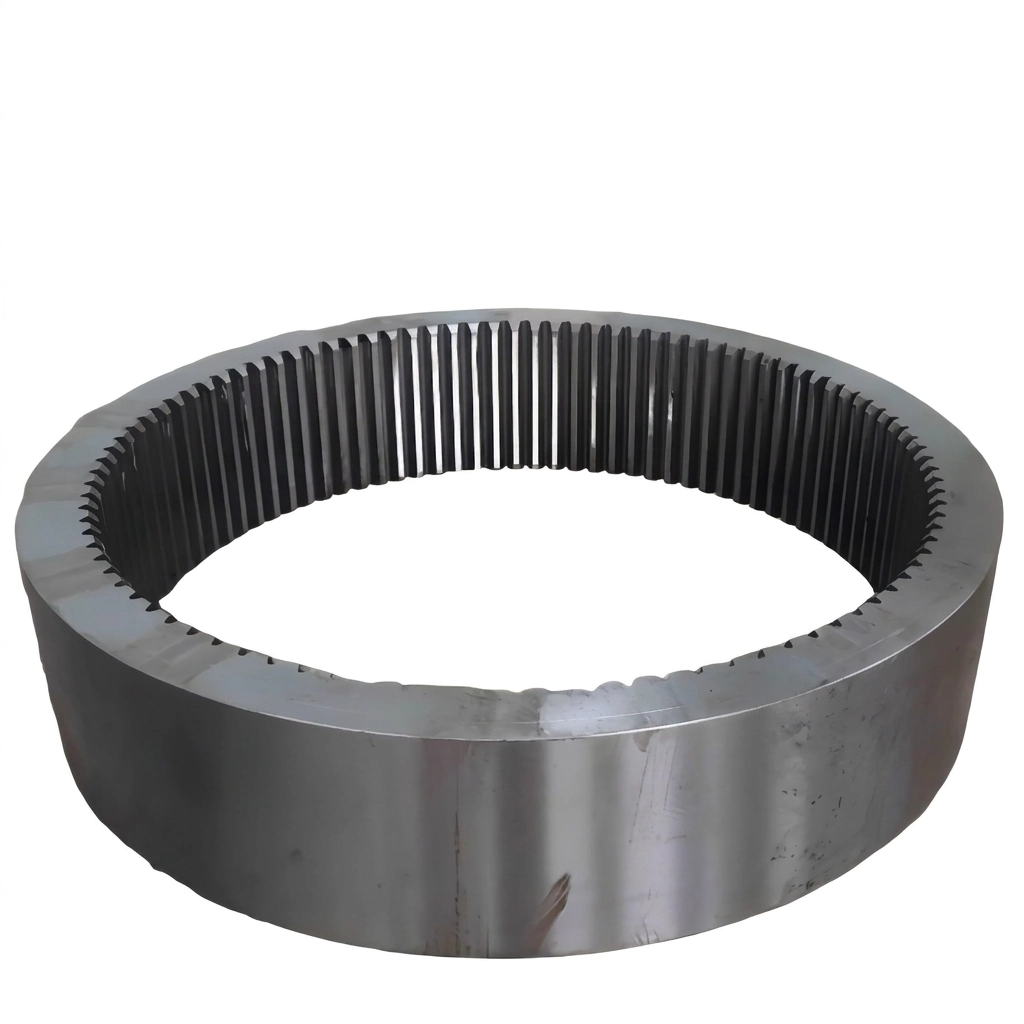

Gear Ring Forgings for Heavy-Duty Power Transmission
Gear ring forgings (also known as forged inner ring gears) are massive structural transmission components that serve as the outer rim or stationary internal gear in high-reduction planetary gear systems and ring-driven industrial machinery. Because these large ring gears must transfer high motor torque while bearing severe impact loads, material purity and internal density are paramount.
Compared to cast or flame-cut gear rings that suffer from core porosity and brittle tooth roots, hot-forged gear ring blanks offer far superior structural strength. The forging process directions grain flow along the ring's circumferential contour, dramatically increasing bending fatigue strength at the tooth root. Combined with precision CNC hobbing and deep-case carburizing or nitriding, our gear ring forgings offer maximum wear resistance and long-term operational stability.
Key Features
| Feature | Description |
| High Torque Transmission Capacity | Engineered to absorb severe motor torque and continuous dynamic loads without structural deformation or ring cracking. |
| Superior Core Toughness & Hardened Surface | Carburizing or nitriding heat treatment develops a fatigue-resistant outer tooth profile over a high-impact-resistant forged core. |
| Precision Tooth Geometry | CNC milling and hobbing ensure tight tooth pitch, accurate profile tolerance, and high transmission efficiency. |
| Compact High-Ratio Power Density | Inner ring gear configurations allow maximum power transmission density in compact gearbox housing designs. |
| Fully Customized Dimensions | Custom manufactured strictly according to client CAD drawings, supporting internal circular tooth profiles, splines, and mounting flanges. |
Applications
Our heavy-duty forged gear rings are engineered to withstand continuous, severe-duty environments across heavy industrial sectors:
-
Mining & Mineral Processing: Heavy internal gear rings and planetary ring gears for ball mills, SAG mills, crushers, and rotary kilns using high-durability forged gear blanks.
-
Cement & Chemical Processing: Drives for heavy rotary dryers, raw mills, and industrial mixers subjected to continuous abrasive torque.
-
Metallurgy & Steel Mills: Massive ring gear drives for ladle turrets, rolling mill drives, and heavy material handling cranes.
-
Electric Power & Energy: Large internal ring gears for coal pulverizers, wind turbine yaw/pitch planetary gearboxes, and hydro-turbine drive systems.
Materials & Technical Specifications
Selecting the proper alloy grade and thermal process ensures long tooth service life under extreme contact pressures:
| Parameter Category | Technical Specification |
| Product Name | Gear Ring Forgings / Custom Internal Ring Gears |
| Primary Materials | 17CrNiMo6, AISI 4140, 40CrNiMo, Bronze, Custom Alloy Steels |
| Workpiece Weight Capability | 1 Ton to 10 Tons (Single Component Weight) |
| Supported Component Types | Inner Ring Gears, Planetary Gears, Sun Gears, Planetary Carriers |
| Machining & Tooth Processing | Hot Forging + Gear Hobbing + CNC Milling |
| Heat Treatment Options | Carburizing or Nitriding (Deep-Case Surface Hardening) |
| Tooth Profiles | Internal Spur Teeth, Internal Helical Teeth, Bespoke Tooth Designs |
| Quality & Inspection | Ultrasonic Testing (UT), Hardness Profiling, CMM Dimensional Inspection |
| Export Logistics & Packaging | Standard Reinforced Wooden Cases (Package Ref: 100cm×100cm×100cm, Gross Weight: up to 100,000kg) |
Manufacturing Process
To guarantee uniform circumferential strength, defect-free material, and precise tooth engagement, FWD Forgings follows a rigorous 4-step manufacturing process:
Quality Assurance
For heavy 1-to-10-ton gear ring forgings, uncompromised quality assurance is critical to prevent costly plant downtime. FWD Forgings enforces stringent quality controls:
-
100% Ultrasonic Testing (UT): Volumetric non-destructive testing ensures zero subsurface cracks, inclusions, or void defects inside the heavy forged ring body.
-
Chemical Composition Verification: Spectrographic testing confirms material heat numbers match specified alloy grades (17CrNiMo6, AISI 4140, etc.).
-
Case Depth & Hardness Metallography: Micro-hardness testing verifies carburizing or nitriding depth and core-to-surface hardness gradients.
-
Tooth Profile & Concentricity Inspection: Precision CMM and gear measuring instruments verify pitch accuracy, tooth thickness, and radial runout.
Why Choose FWD Forgings
Heavy Forging Capacity up to 10 Tons
Operating as an established China forging manufacturer, FWD Forgings possesses the hydraulic press capacity and thermal processing infrastructure to produce heavy gear rings weighing from 1 ton up to 10 tons.
Advanced Carburizing & Nitriding Facilities
Our in-house heat treatment capabilities allow precise control over deep-case carburizing and nitriding parameters, delivering optimal tooth contact strength and fatigue resistance for high-load planetary systems.
Comprehensive Heavy Transmission Supply
In addition to gear ring forgings, we manufacture complete planetary sets—including sun gears, planet gears, and planetary carriers—as well as other heavy duty forged components, offering a complete supply solution for equipment manufacturers.
Frequently Asked Questions
Q1: What are gear ring forgings used for?
Gear ring forgings are large internal or external ring gears used as primary torque-transmitting components in heavy-duty planetary gearboxes, mill drives, rotary kilns, and high-reduction industrial transmission systems.
Q2: Why choose forged gear rings over cast or welded gear rings?
Hot forging refines the metal's grain structure and eliminates internal blowholes, micro-porosity, and inclusions. Forged gear rings offer significantly higher tensile strength, impact toughness, and resistance to tooth root bending fatigue under dynamic heavy loads.
Q3: What materials and heat treatment options do you provide for large gear rings?
We forge ring gears from high-strength alloy steels including 17CrNiMo6, AISI 4140, 40CrNiMo, and bronze. Surface hardening options include deep carburizing or nitriding to maximize tooth wear resistance.
Q4: What single workpiece weight range can FWD Forgings produce for ring gears?
Our production facility supports custom gear ring forgings with single workpiece weights ranging from 1 ton up to 10 tons.
Q5: What technical details are needed to receive a custom quote?
Please provide your 2D/3D CAD drawings (STEP, PDF), material grade, tooth profile specifications (module, number of teeth, pressure angle), required heat treatment (carburizing/nitriding depth), and order quantity.
