Planetary Gear Forgings for Industrial Speed Reducers
Product Overview & Key Features
Planetary Gear Forgings for Reliable Power Transmission

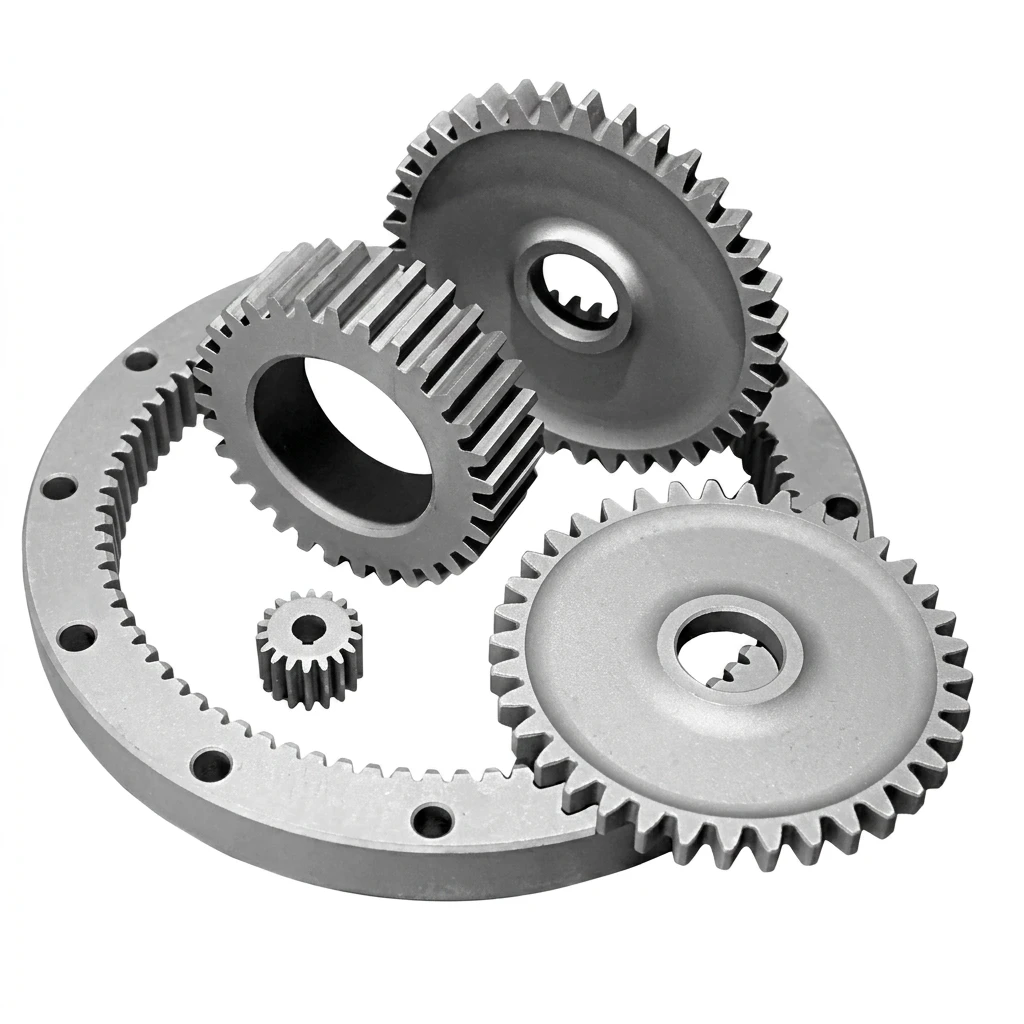

Planetary gears (or planet pinions) are essential rotating gear elements that mesh simultaneously with the central sun gear and outer ring gear within planetary reduction gearboxes. Because planetary gear sets distribute high motor torque across multiple gear contacts, each individual planet gear must endure high-cycle tooth bending fatigue, surface contact stress, and severe radial loads.
Compared to cast or cut-bar stock gears, hot-forged planetary gears offer vastly superior mechanical reliability. The hot forging process compresses micro-voids and aligns the internal grain flow along the tooth root contour, significantly increasing shear resistance and tooth bending strength. Paired with precision CNC hobbing, milling, and specialized surface hardening, our planetary gear forgings ensure reliable torque transmission in heavy industrial drives.
Key Features of Planetary Gear Forgings
| Feature | Description |
| High Power Transmission Density | Compact gear geometry handles massive torque throughput by evenly distributing loads across planet gear sets. |
| Large Module Hobbing & Milling | Equipped to machine heavy gear profiles up to Module 40 (Hobbing) and Module 50 (Milling) for heavy machinery. |
| Advanced Surface Hardening | Carburizing or nitriding processes create an ultra-hard, wear-resistant outer casing while preserving a shock-absorbing core. |
| Global Standard Compliance | Fully compliant with DIN, ISO, ANSI, JIS, GB, and BA engineering specifications for easy integration into international gearboxes. |
| Precision Tooth Geometry | High-accuracy gear milling and hobbing minimize rotational vibration, gear noise, and tooth backlash in speed reducers. |
Applications of Planetary Gear Forgings
Our custom-forged planetary gears are engineered to satisfy continuous high-torque and high-impact requirements across heavy industrial sectors:
-
Mining & Mineral Processing: High-impact planetary gears for excavator slewing drives, crushers, ball mills, and heavy winches using high-strength gear forgings.
-
Cement & Material Handling: Planet pinions for rotary kiln drives, raw mill gearboxes, and heavy industrial conveyor drive units.
-
Metallurgy & Heavy Manufacturing: Planetary reduction gearboxes for rolling mill drives, ladle crane winches, and continuous casting drives.
-
Electric Power & Chemical Industry: High-durability planetary gear sets for coal pulverizers, chemical agitator drives, and hydro-turbine speed reducers.
Materials & Technical Specifications
Selecting the proper steel grade and thermal processing ensures long service life against tooth pitting, spalling, and bending fatigue:
| Parameter Category | Technical Specification |
| Product Name | Planetary Gear Forgings / Custom Industrial Gear Part |
| Carburizing Steels | 20CrMnTi, 20CrMnMo (Ideal for High Wear Resistance) |
| Alloy Steels | 40Cr, 35CrMo, 42CrMo, 40CrNiMo (Ideal for Heavy-Load, High-Torque Equipment) |
| Medium Carbon Steels | 35#, 45# (For General Low-Load Transmission) |
| Cast Iron Options | HT250, QT400 (For Cost-Effective Low-Speed Machinery) |
| Gear Machining Capacity | Gear Hobbing: up to Module 40 | Gear Milling: up to Module 50 |
| Heat Treatment Processes | Carburizing Quenching, Nitriding, Hardening & Tempering, Surface Quenching, Integral Quenching, Normalizing |
| International Standards | DIN, ISO, ANSI, JIS, GB, BA Standards |
| Core Functions | Speed Reduction, Planetary Torque Transfer, Heavy Rotation Drives |
Manufacturing Process
To guarantee uniform material density, exact tooth profile geometry, and high core toughness, FWD Forgings follows a controlled 4-step manufacturing process:
Quality Assurance
For heavy planetary gearboxes, rigorous quality assurance is critical to prevent tooth shear and unexpected gearbox downtime. FWD Forgings enforces strict quality control systems:
-
Spectrographic Chemical Analysis: Verifies raw alloy purity and elemental composition before hot forging begins.
-
Ultrasonic Non-Destructive Testing (UT): 100% volumetric inspection to eliminate internal cracks, porosity, or inclusions inside the forged gear body.
-
Metallographical Case Depth Inspection: Verifies carburizing or nitriding case depth and hardness gradients from surface to core.
-
Precision CMM & Gear Profile Measurement: Accurately measures pitch line, tooth thickness, runout, and gear tooth profile per DIN/ISO standards.
-
Complete Documentation: Full material test reports (MTRs) provided for all heavy equipment forged parts.
Why Choose FWD Forgings
Large Module Machining Equipment
Equipped with heavy gear hobbing machines capable of handling up to Module 40 and gear milling up to Module 50, FWD Forgings easily produces large-scale planetary gears that many standard machine shops cannot accommodate.
Comprehensive Thermal Processing
Operating as an established oem forging supplier, our in-house heat treatment capabilities allow precise control over carburizing, nitriding, quenching, and tempering to match your specific torque and wear specifications.
Build-to-Print OEM Customization
We specialize in build-to-print production, supporting custom 2D/3D CAD drawings, custom gear ratios, special bore splines, and keyways tailored directly to your gear reducer housing.
Frequently Asked Questions
Q1: What are planetary gear forgings used for?
Planetary gear forgings are high-strength rotating pinions used in planetary gearboxes, slewing drives, winches, and industrial speed reducers to transfer power and high torque between sun and ring gears.
Q2: Why choose forged planetary gears over cast or bar-stock gears?
Hot forging compresses internal air pockets and aligns the metal's grain structure along the gear tooth profile. This results in significantly higher tooth bending strength, superior impact toughness, and greater resistance to contact fatigue cracking compared to cast iron or bar-stock gears.
Q3: What gear module sizes and international standards do you support?
We machine planetary gears up to Module 40 via gear hobbing and Module 50 via gear milling. All planetary gears can be manufactured in full compliance with DIN, ISO, ANSI, JIS, GB, and BA standards.
Q4: Which material grade is best for high-wear planetary gear applications?
For severe wear scenarios, carburizing alloy steels such as 20CrMnTi or 20CrMnMo combined with carburizing quenching are recommended. For extreme torque and shock loads, high-strength alloy steels like 42CrMo or 40CrNiMo are ideal.
Q5: What information is needed to receive a custom planetary gear quote?
Please provide your 2D/3D CAD drawings (STEP, PDF), specified material grade, tooth parameters (module, number of teeth, pressure angle), required heat treatment, and target order quantity.
