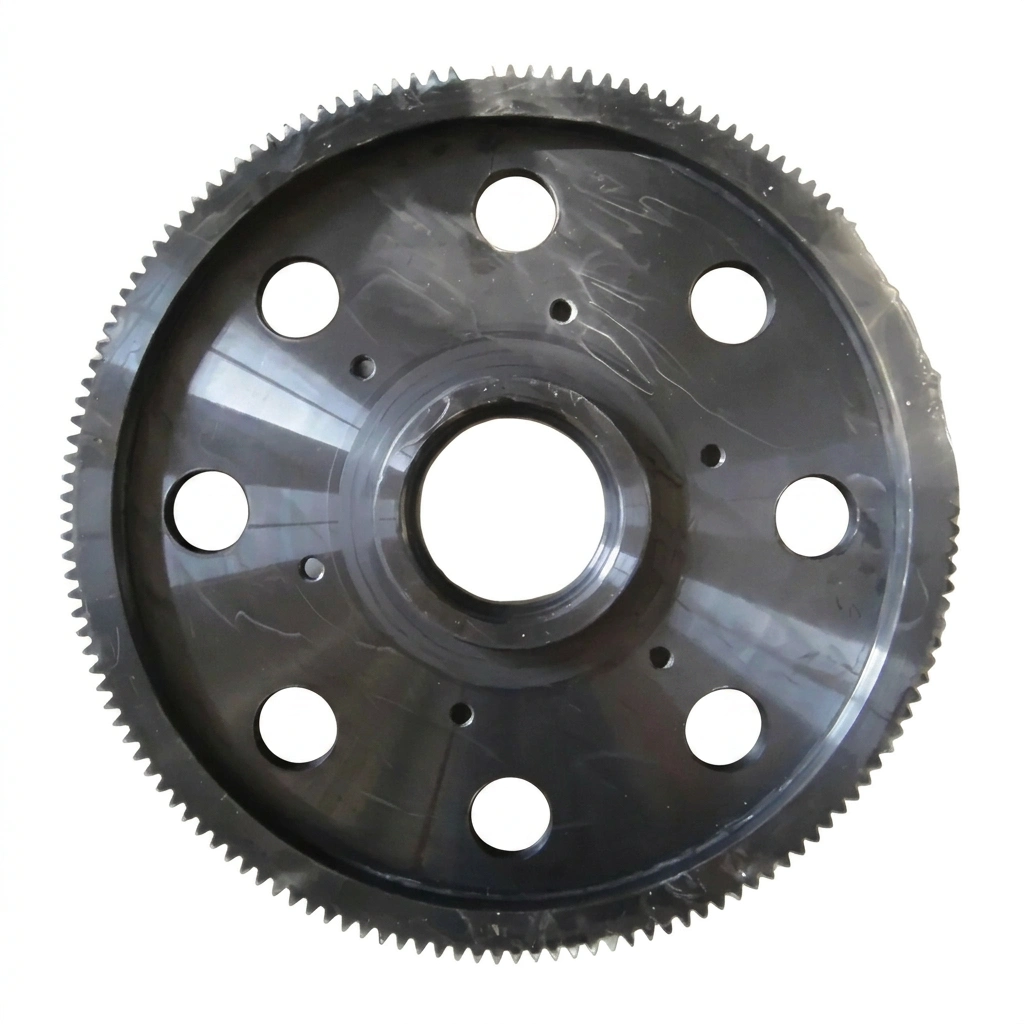

Reducer Gear Forgings for High-Torque Transmission
Product Overview & Key Features
Reducer Gear Forgings for High-Torque Transmission
Reducer gear forgings are critical power transmission components used inside industrial speed reducers to decrease rotational speed while exponentially increasing output torque. Because speed reducer gears endure continuous parallel-shaft meshing, high radial loads, and sudden load reversals, raw material density and tooth fatigue strength dictate the overall service life of the drive system.
While cast spur gears are prone to subsurface gas voids and brittleness, hot-forged reducer gears offer vastly superior mechanical reliability. The forging process directions the metal grain flow along the gear perimeter, creating a dense, homogeneous structure that resists tooth root cracking and wear. Combined with precision tooth hobbing and optional black oxide or zinc plating, our stainless steel reducer gear forgings ensure quiet, smooth, and dependable speed reduction.
Key Features
| Feature | Description |
| Defect-Free Grain Flow | High-tonnage hot forging refines internal metal grain structure, providing maximum core toughness and tooth shear resistance. |
| Versatile Bore Options | Supplied as either ready-to-mount finished bores or pre-machined processing bores for secondary shaft fitting. |
| Multi-Standard Compliance | Fully engineered to meet ANSI, DIN, and ISO dimensional and tooth profile requirements. |
| Protective Surface Coatings | Available with black oxide, zinc plating, or natural steel finish to protect against operational wear and corrosion. |
| Scalable Monthly Capacity | Supported by a stable monthly output of 10,000 pieces for both OEM batch production and quick-turn replacement orders. |
Applications
Our custom-forged stainless steel reducer gears are engineered to satisfy continuous high-torque speed reduction demands across major industrial sectors:
-
Industrial Speed Reducers & Drives: Main input and output spur gears for parallel-shaft speed reducers, shaft-mounted gearboxes, and industrial drive units using high-strength forged gear blanks.
-
Conveyor & Material Handling Systems: Heavy-duty gear drives for belt conveyors, bucket elevators, and sorting machinery operating under continuous rotational stress.
-
General Machinery Transmission: Compact speed reduction gears for packaging machines, textile equipment, paper mills, and food processing machinery requiring stainless steel cleanliness.
-
Mining & Heavy Construction Drives: Drive train reducer gears for agitators, winches, and small-to-medium reduction gear housings.
Materials & Technical Specifications
Selecting the proper surface finish, bore style, and dimensions ensures exact fitment and long service life inside your speed reducer assemblies:
| Parameter Category | Technical Specification |
| Product Name | Reducer Gear Forgings / Custom Stainless Steel Spur Gear |
| Primary Material | Stainless Steel (Custom Alloy Options Available) |
| Toothed Portion Shape | Spur Gear Profile |
| Engineering Standards | ANSI, DIN, ISO Compliant |
| Bore Types Supported | Finished Bore, Preprocessing Bore |
| Surface Treatments | Black Oxide, Zinc Plated, Natural Steel Finish |
| Color Options | Natural Steel, Black Finished |
| Production Capacity | 10,000 Pieces / Month |
| Customs & Logistics | HS Code: 8483900090 | Origin: Jinan, China |
| Packaging Details | Standard Wooden Box Packaging (Dimensions: 95×70×75 cm, Gross Weight: 800 kg) |
Manufacturing Process
To guarantee uniform density, accurate tooth geometry, and clean surface finishes, FWD Forgings follows a controlled 4-step manufacturing process:
Quality Assurance
Quality control is critical when manufacturing reducer gear forgings, as slight pitch errors or core defects can cause excessive vibration, gear noise, and tooth pitting inside speed reducers. FWD Forgings enforces strict quality inspection protocols:
-
Material Purity Verification: Spectrographic analysis confirms 100% chemical composition compliance for stainless steel billets.
-
Ultrasonic Flaw Detection (UT): Volumetric non-destructive testing eliminates internal cracks or voids before gear tooth cutting begins.
-
CMM & Tooth Profile Measurement: Coordinate measuring machines verify pitch circle diameter, tooth profile accuracy, runout, and concentricity per ANSI/DIN/ISO standards.
-
Surface Coating Thickness & Adhesion Inspection: Verifies uniform layer thickness for black oxide and zinc plated finishes to ensure long-term corrosion resistance.
-
Full Traceability: All shipments of precision forged parts include dimensional inspection reports and material certification logs.
Why Choose FWD Forgings
Superior Forging Strength vs. Cast Reducer Gears
As a specialized industrial forging manufacturer in Jinan, China, FWD Forgings utilizes hot die forging rather than brittle casting. Our forged reducer gears deliver up to 30% higher tensile strength and superior impact toughness under continuous torque loads.
Flexible OEM / ODM Customization
We support full customization of gear models, modules, teeth counts, face widths, and hub keyway configurations. Whether you need finished bore reducer gears or semi-machined blanks, we build strictly to your 2D/3D CAD specifications.
Stable Production & Global Logistics
Supported by a monthly production capacity of 10,000 pieces and standardized seaworthy wooden box packaging, we ensure reliable lead times and safe global shipping under HS Code 8483900090.
Frequently Asked Questions
Q1: What are reducer gear forgings used for?
Reducer gear forgings are primary torque-transmitting spur gears used inside industrial speed reducers, gearboxes, and drive systems to lower shaft speeds while increasing output torque.
Q2: Why choose forged stainless steel reducer gears over cast reducer gears?
Hot forging compresses internal micro-porosity and aligns the metal's grain structure along the tooth root contour. Forged reducer gears offer significantly higher tooth bending strength, impact resistance, and fatigue life compared to cast gears, preventing tooth shear under sudden torque surges.
Q3: What bore options and standards do you support for reducer gears?
We offer both finished bores (ready with keyways and setscrew holes) and preprocessing bores (for custom downstream machining). All reducer gears comply with global ANSI, DIN, and ISO specifications.
Q4: What surface finishes and color options are available?
We offer surface treatments including black oxide and zinc plating, with finished appearance choices of natural steel or black.
Q5: What packaging and logistics details apply to bulk reducer gear orders?
Goods are packed in solid wooden export cases measuring 95×70×75 cm with a gross weight of approximately 800 kg per case, shipped globally under HS Code 8483900090.
