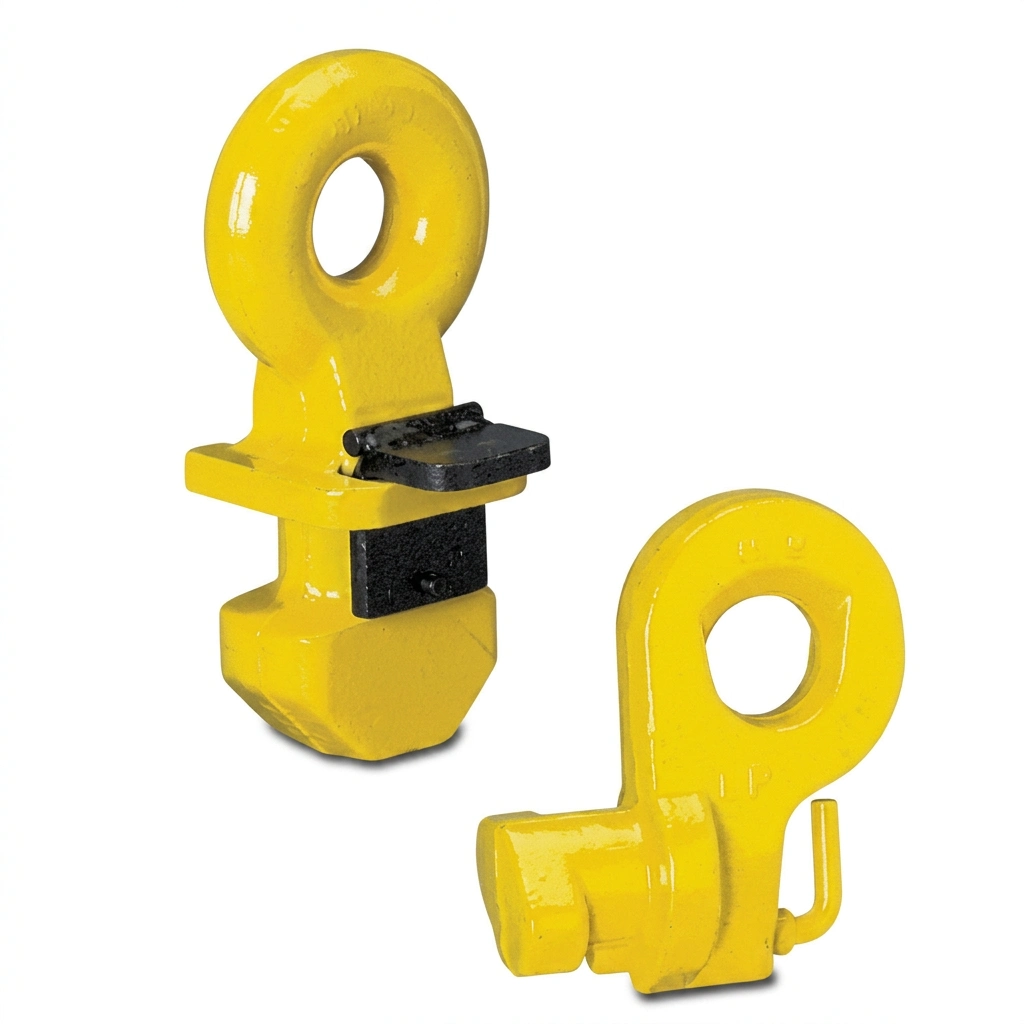

Heavy-Duty Forged Lifting Lugs & Structural Support Fittings

40,000 Lbs Heavy Payload Capacity: Solid hot-forged construction eliminates internal voids and stress concentration points, delivering a 40,000 Lbs maximum load rating for safe heavy lifting.
Galvanized Anti-Rust Surface Treatment: Heavy-duty hot-dip or electro-galvanized coating (available in standard yellow or custom colors) resists salt spray, rain, and offshore corrosion.
Standard Unit & Package Specs: Single lug weight of 7.25 kg; packed in solid export wooden cases (40×30×15 cm, gross weight 8 kg) under HS Code 7326909000.
Massive Monthly Output: Manufactured in our China facility with a stable capacity of 10,000 pieces per month to support high-volume maritime and logistics orders.

Product Detail

Product Overview & Key Features

Solid Forged Lifting Lugs for High-Stress Industrial Rigging

Lifting lugs, rigging trunnions, and container lifting fittings are critical single-point failure components in heavy material handling. When lifting lugs are fabricated via flame-cut plate or basic casting, hidden micro-porosity, internal laminations, or weld seam weaknesses can result in catastrophic fatigue failure during high-dynamic crane hoists.

FWD Forgings solves this critical safety challenge through high-tonnage solid steel forging. By subjecting high-purity steel billets to intense hot forging, internal grain boundaries are continuously aligned along the lug's loop geometry and mounting bolt pads. Combined with precision CNC bolt-hole machining and protective galvanizing, our heavy-duty container lifting lugs provide maximum shear resistance, superior yield strength, and long-term security in marine and construction environments.

Key Features of Forged Lifting Lugs & Supports

Feature	Description
Solid Forged Steel Strength	High-density hot-worked matrix provides maximum tensile yield and dynamic impact resistance under full load.
40,000 Lbs Payload Rating	Rigorously tested and rated for heavy-duty container crane lifts up to 40,000 Lbs per lifting point.
Galvanized Protective Finish	Yellow galvanized finish (or custom powder coatings) shields the forged steel base from severe marine weathering.
Standardized ISO Fitment	Precision-machined mounting faces and bolt centers allow universal fitment on standard shipping container corners.
7.25 kg Optimized Weight	Robust 7.25 kg unit weight balances ultimate structural strength with manageable manual installation.

Applications

Our heavy-duty forged lifting lugs and support fittings provide certified load-bearing attachment points across demanding industrial sectors:

Shipping Container & Port Logistics: Top and side ISO container lifting fittings, spreader bar hook attachments, and intermodal transport rigging using custom custom forgings.
Offshore & Marine Infrastructure: Deck-mounted pad eyes, skid lifting trunnions, modular offshore basket lugs, and crane hook rigging attachments.
Heavy Equipment & Modular Buildings: Pre-engineered structural lifting points for mobile generator skids, transformer housing frames, and modular steel buildings.
Mining & Construction Machinery: Heavy excavator lifting eyes, crane counterweight lugs, and temporary rigging support brackets.

Material Options & Technical Specifications

We manufacture lifting fittings using certified high-strength carbon and structural alloy steels engineered for dynamic load safety:

Parameter Item	Technical Specification
Product Name	Lifting Lug & Support Special Forgings / Shipping Container Lifting Lug
Manufacturing Technique	Solid Hot Die Forging + Precision CNC Machining
Maximum Payload Rating	Up to 40,000 Lbs (approx. 18,143 kg / 18.1 Tons)
Unit Weight	7.25 kg per piece
Mounting Standard	ISO Compliant Bolt-On Design
Surface Treatment	Galvanized Anti-Rust Coating (Yellow Regular / Custom Colors)
Package Dimensions & Weight	Solid Wooden Case: 40 × 30 × 15 cm \| Gross Weight: 8 kg / package
Monthly Production Capacity	10,000 Pieces / Month
Customs HS Code	7326909000

Manufacturing Process

FWD Forgings executes a strict 4-step manufacturing sequence to guarantee 100% volumetric soundness and load reliability:

1. Billet Inspection & Induction Heating:High-Tensile Billet Pre-Heating.

Certified carbon and alloy steel stock is spectrographically verified and uniformly heated in computer-controlled induction furnaces.

2. Hot Die Forging Deformation:Solid Closed-Die Forging.

High-tonnage hydraulic presses hot forge the solid lug body, aligning metal grain boundaries continuously along the lifting loop and mounting flanges.

3. Machining & Galvanized Surface Treatment:CNC Bolt-Hole Machining & Galvanizing.

Mounting bolt holes are precision CNC drilled for ISO compliance, followed by hot-dip or electro-galvanizing for anti-rust protection.

4. Quality Inspection & Wooden Box Packing:Proof Load Testing & Export Packing.

100% dimensional checks and sample proof-load testing are completed before packing lugs into solid 40×30×15 cm wooden cases.

Quality Assurance

Rigging components used in critical overhead lifts demand total quality verification to guarantee safety under static and dynamic strain:

Proof-Load & Tensile Testing: Sample testing to 1.5× to 2.0× safety factors confirms structural integrity up to and beyond the 40,000 Lbs payload rating.
100% Magnetic Particle Inspection (MT): Volumetric surface inspection detects and eliminates any forging cracks or discontinuities around high-stress radii.
Galvanized Layer Thickness Measurement: Coating gauges verify uniform galvanizing thickness for long-term corrosion resistance in salt-water marine air.
ISO Dimensional Fitment Audit: Precision CMM and pin gauges confirm perfect bolt-center alignment with standard ISO corner castings.
Full Mill Test Reports: All shipments from our hot forging manufacturer facility include raw material chemical analysis and mechanical test certs.

Why Choose FWD Forgings

Certified Safety & Heavy-Duty Reliability

As a trusted international supplier of forged metal products, FWD Forgings prioritizes overhead load safety. Our solid forged steel construction avoids the fatigue failure risks inherent in cast or welded lifting lugs.

High Output Capacity & Rapid Logistics

With a stable production output of 10,000 pieces per month, we support fast lead times for container fleet manufacturers, rental yards, and major port logistics operations worldwide.

Full OEM Customization & Technical Support

We offer custom colors, specialized mounting hole configurations, custom laser-etched load ratings, and dedicated online engineering support to assist with client-specific rigging calculations.

Frequently Asked Questions

Q1: What is the maximum weight capacity of the forged shipping container lifting lug?

Our heavy-duty forged container lifting lug supports a maximum rated payload of 40,000 Lbs (approx. 18,143 kg) per lug.

Q2: Why are forged lifting lugs superior to cast or welded plate lifting eyes?

Hot forging compresses internal air pockets and aligns metal grain flow continuously around the lifting hole and mounting flanges. This yields significantly higher tensile strength, impact toughness, and resistance to fatigue cracking compared to cast iron or welded steel plate lugs.

Q3: Is the installation compatible with standard ISO shipping containers?

Yes. The bolt-on mounting pattern is fully compliant with standard ISO freight container dimensions and corner fitting specifications for fast, direct attachment.

Q4: What surface finish and packaging are provided for export orders?

The lugs feature a heavy-duty yellow galvanized anti-rust surface treatment (custom colors available). They are securely packed in export-standard solid wooden cases measuring 40 × 30 × 15 cm with a gross package weight of 8 kg under HS Code 7326909000.

Q5: What is your monthly supply capacity and technical support availability?

Our China production facility maintains a stable capacity of 10,000 pieces per month, backed by professional online technical and engineering support for all global clients.
