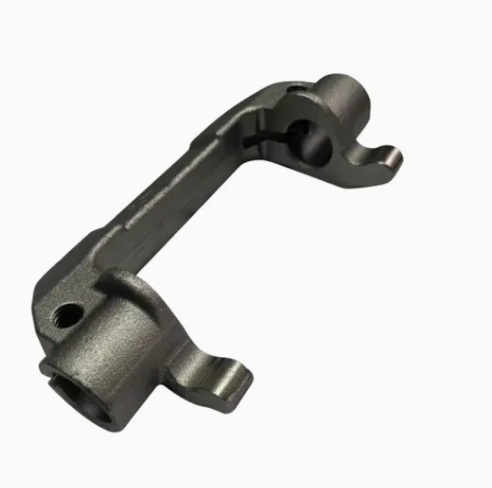

Fork & Bracket Forgings for Structural & Machinery Assemblies
Product Overview & Key Features
One-Stop OEM Custom Fork & Bracket Forgings
Forks, clevises, mounting brackets, and pivot linkages are critical load-bearing connectors in vehicles, agricultural machinery, and industrial hydraulic systems. When these components are fabricated via welding or basic casting, internal micro-porosity and heat-affected zone (HAZ) weaknesses can lead to catastrophic cracking under severe shock loads and cyclic bending stress.
FWD Forgings provides comprehensive OEM & ODM custom manufacturing solutions for forged brackets and fork assemblies. Hot forging consolidates internal metal density and forces grain boundaries to follow the complex shape of the component. Combined with in-house heat treatment and high-precision CNC machining, our forged forks and brackets offer superior tensile strength, exact pin-hole alignment, and long-term durability under high dynamic loads.
Key Features
| Feature | Description |
| Optimized Grain Flow | Metal grain structure follows bracket geometry, providing superior fatigue strength under cyclic shear loads. |
| ±0.02mm Machining Precision | In-house precision CNC boring and milling ensure perfect hole centerlines and mounting pad flatness. |
| Flexible Material Selection | Engineered in carbon steel, alloy steel, stainless steel, ductile iron, aluminum, and brass based on application demands. |
| Comprehensive Weight Range | Capabilities span from 0.02kg micro-linkage forks to 120kg heavy equipment mounting brackets. |
| Multi-Process Finishing | Complete surface treatments including electro-galvanizing, hot-dip galvanizing, anodizing, sandblasting, and black oxide. |
Applications
Our custom-forged forks and structural brackets serve as high-strength connectors and pivot points across global manufacturing sectors:
-
Automotive & Commercial Vehicles: Suspension control forks, steering knuckles, engine mounting brackets, gear shift forks, and cross-member connectors utilizing custom special forgings.
-
Agricultural & Farm Machinery: Heavy tractor hitch linkages, harvester lifting forks, hydraulic cylinder clevises, and implement mounting brackets.
-
Construction & Mining Equipment: Excavator bucket linkage forks, boom pivot brackets, stabilizer leg mounts, and heavy chassis fittings.
-
Hydraulic Valves, Pumps & Power Transmission: Hydraulic actuator forks, valve body mounting brackets, gear housing supports, and pump mounting flanges.
Material Options & Technical Specifications
We process a complete array of ferrous and non-ferrous raw materials to meet specific strength, weight, and corrosion resistance requirements:
| Material Category | Popular Material Grades | Key Characteristics & Typical Applications |
| Carbon & Alloy Steel | 1045, C45, 4140 (42CrMo), 4340, 20CrMnTi | High strength, exceptional fatigue resistance, and toughness for high-stress automotive & machinery brackets. |
| Stainless Steel | 304, 316L, 17-4PH (SUS630), Duplex | High corrosion resistance and yield strength for marine, chemical, and outdoor agricultural equipment. |
| Ductile & Grey Iron | QT450-10, QT500-7, HT250 | Excellent vibration damping and wear resistance for stationary gear housings and heavy machinery supports. |
| Non-Ferrous Alloys | Aluminum Alloy (6061, 7075), Brass, Copper, Zinc | Lightweight, high strength-to-weight ratio, and corrosion resistance for aerospace and precision linkages. |
Technical Specifications Summary
| Parameter Item | Technical Specification |
| Product Name | Fork & Bracket Forgings / OEM Custom Metal Components |
| Manufacturing Processes | Hot Die Forging, Precision Casting, Multi-Axis CNC Machining |
| Part Weight Range | 0.02kg to 120kg (Custom Sizes per Drawings) |
| Machining Tolerance | Up to ±0.02mm |
| Heat Treatment Options | Annealing, Normalizing, Quenching, Tempering, Induction Hardening, Solution Treatment |
| Surface Finishing | Polishing, Anodizing, Sand Blasting, Zinc Plating, Galvanizing, Black Oxide |
| Quality Certifications | ISO 9000, TS16949, ISO 14001 Compliant |
| Manufacturing Standards | ISO, DIN, AISI, ASTM, JIS |
Manufacturing Process
FWD Forgings provides full one-stop execution from raw billet selection to finished, surface-treated components:
Quality Assurance
Forged brackets and forks used in dynamic assemblies require rigorous non-destructive and dimensional testing to ensure zero failure under shock loading:
-
3D CMM Dimensional Verification: Coordinate Measuring Machines (CMM) audit critical hole centers, bore parallelism, and mounting face tolerances to ±0.02mm.
-
Hardness & Microstructure Testing: Rockwell (HRC) and Brinell (HB) testing verify uniform heat treatment depth post-quenching or induction hardening.
-
Surface Roughness & Runout Auditing: Profilometers verify surface smoothness across bearing journal faces and pin bores.
-
Non-Destructive Testing (NDT): Magnetic Particle Inspection (MT) and Liquid Penetrant Testing (PT) detect subsurface cracks along high-stress fork radii.
-
Full Process Traceability: Every batch from our forged products catalog includes chemical, mechanical, and dimensional test certificates.
Why Choose FWD Forgings
Complete One-Stop OEM & ODM Capability
As a certified oem forging supplier, FWD Forgings manages the entire production cycle under one roof—from die design, raw forging, and thermal processing to precision CNC machining and custom surface plating.
Multi-Material & Weight Flexibility
Whether you require lightweight aluminum control forks (0.02kg) or heavy alloy steel excavator pivot brackets (120kg), our production lines adapt seamlessly to your exact engineering specifications.
Global Quality Standards & Rapid Prototyping
Our facilities operate under ISO 9001, TS16949, and ISO 14001 international standards. We actively support sample prototype production, enabling rapid design verification prior to full-scale series production.
Frequently Asked Questions
Q1: What are fork & bracket forgings?
Fork & bracket forgings are custom metal connecting components—such as shift forks, suspension clevises, pivot linkages, and heavy mounting brackets—manufactured via hot die forging for superior mechanical strength and structural reliability.
Q2: What is the benefit of choosing forged brackets over cast or welded brackets?
Forging compresses internal metal voids and aligns grain boundaries along the component's outer contours. This provides significantly higher tensile strength, dynamic shock resistance, and fatigue life compared to cast or welded brackets, which are prone to porosity and weld seam failure.
Q3: What machining tolerances and weight ranges can FWD Forgings achieve?
We achieve precision CNC machining tolerances up to ±0.02mm across a broad weight range spanning from 0.02kg to 120kg.
Q4: What material grades and surface treatments are available?
We process carbon steel, alloy steel (4140, 20CrMnTi), stainless steel (304, 316L, 17-4PH), ductile iron, aluminum, and brass. Surface finishing options include zinc plating, hot-dip galvanizing, anodizing, sandblasting, and black oxide.
Q5: Do you support prototype and sample production?
Yes. We provide complete prototype development and short-run sample production to verify physical fit and mechanical performance before initiating high-volume OEM manufacturing.
