Open Die Forging

Open Die Forging Solutions for Large Industrial Components

FWD Forgings provides customized Open Die Forging solutions for customers requiring large-scale forged components with excellent structural integrity, flexible dimensions, and reliable performance for heavy industrial applications.

Open die forging uses repeated pressing between flat or simple-shaped dies to gradually shape heated metal. Unlike closed die processes that depend on fixed cavities, this method provides greater flexibility for manufacturing oversized components, large cross-sections, and engineering forgings with customized dimensions.

As a professional steel forging manufacturer, FWD supplies large forged components for energy equipment, heavy machinery, industrial systems, and other applications requiring robust forged structures.

Manufacturing Advantages of Large-Scale Forging

Manufacturing Capability for Oversized Forgings

Open die forging is particularly suitable for components that exceed the size limitations of enclosed dies.

Typical components include:

• Large shafts
• Heavy discs
• Forged rings
• Large round bars

Improved Internal Material Structure

During open die forging, repeated deformation helps refine the internal grain structure and improve material consistency throughout large sections.

Benefits include:

• Better structural uniformity
• Improved reliability
• Enhanced service performance

Flexible Dimensions Without Fixed Die Cavities

Because the process does not rely on complex permanent dies, open die forging allows greater flexibility in:

• Component diameter
• Length
• Weight
• Final geometry

This makes it suitable for customized engineering projects and special-size forgings.

Suitable for Heavy-Duty Industrial Applications

Open die forged components are commonly selected where large size and long-term mechanical reliability are essential.

Applications include:

• Energy equipment
• Heavy machinery
• Industrial drive systems

Large Forged Components for Industrial Equipment

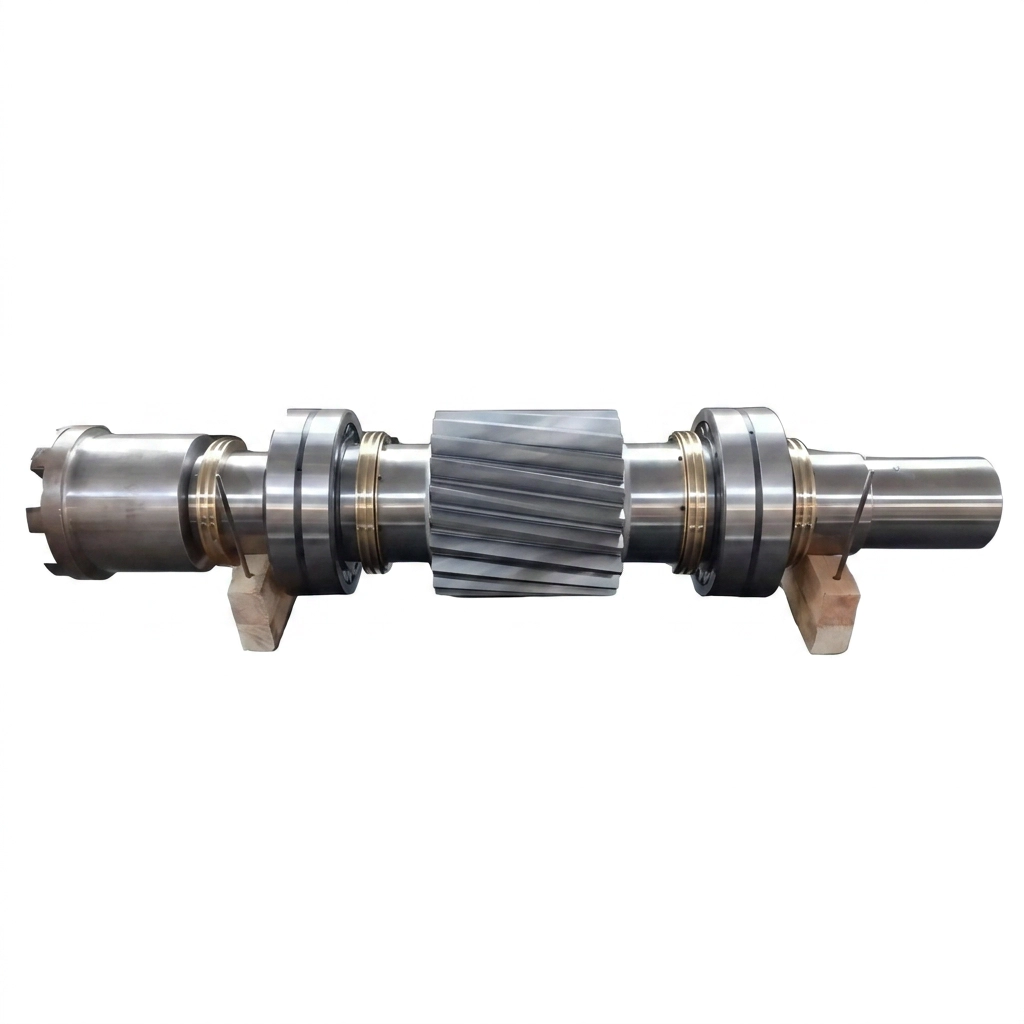

Forged Shafts

Forged shafts are widely used for large rotating equipment requiring high load capacity and structural reliability.

Applications:

• Wind turbine main shafts
• Generator shafts
• Industrial drive shafts

Forged Discs and Rings

Large forged discs and rings are commonly used in pressure equipment and heavy industrial systems.

Applications:

• Pressure vessels
• Turbine components
• Industrial machinery

Forged Round Bars

Open die forged round bars provide high-quality material blanks for machining large industrial components.

Applications:

• Large mechanical parts
• Heavy equipment components
• Engineering projects

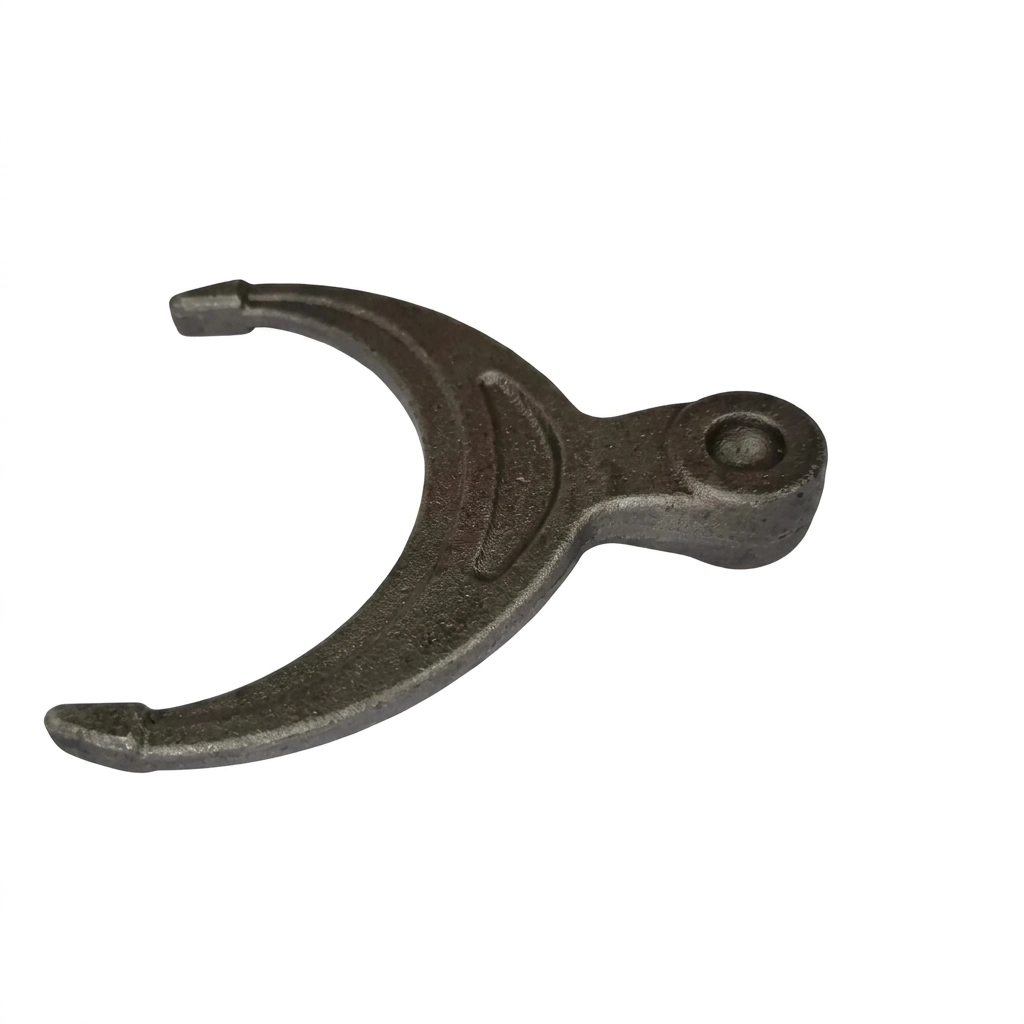

Custom Forged Parts

FWD provides customized large forged components according to customer drawings and technical requirements.

Explore our custom forged parts.

Applications of Open Die Press Forging

Wind Energy Equipment

Wind turbines require large forged components capable of handling continuous loads over long operating periods.

Applications:

• Main shafts
• Drive components
• Structural forgings

Power Generation Equipment

Open die press forging is widely used for large components in power generation systems.

Applications:

• Turbine shafts
• Generator components
• Heavy rotating parts

Oil & Gas Equipment

Large forged components are often required for equipment operating under demanding mechanical conditions.

Applications:

• Pressure equipment parts
• Heavy industrial components

Heavy Machinery Manufacturing

Open die forging supports the production of large components used in mining, construction, and industrial machinery.

Open Die and Closed Die Forging Comparison

For components requiring die-based forming and complex shapes, FWD also provides Closed Die Forging solutions.

Custom Open Die Forging Capabilities

FWD supports customized open die forging projects requiring:

• Large component production
• Special dimensions
• Material requirement evaluation
• Engineering support

Our team works with industrial customers to develop forging solutions for demanding applications where component size and structural reliability are critical.

Quality Control for Large Forged Components

Quality control for open die forging focuses on ensuring material reliability throughout large sections.

Inspection includes:

• Raw material verification
• Ultrasonic testing
• Mechanical property testing
• Dimensional inspection
• Heat treatment verification

These processes help ensure large forged components meet industrial performance requirements.

Frequently Asked Questions About Open Die Forging

What is open die forging used for?

Open die forging is mainly used for producing large industrial components including shafts, discs, rings, and round bars.

What are the advantages of open die press forging?

Open die press forging allows the production of oversized components, flexible dimensions, and heavy-section forgings with improved internal material quality.

What industries use open die forged components?

They are widely used in wind energy, power generation, oil and gas, heavy machinery, and industrial equipment manufacturing.

What is the difference between open die forging and closed die forging?

Open die forging is designed for large and customized components, while closed die forging is used for smaller components requiring detailed shapes and high production repeatability.
